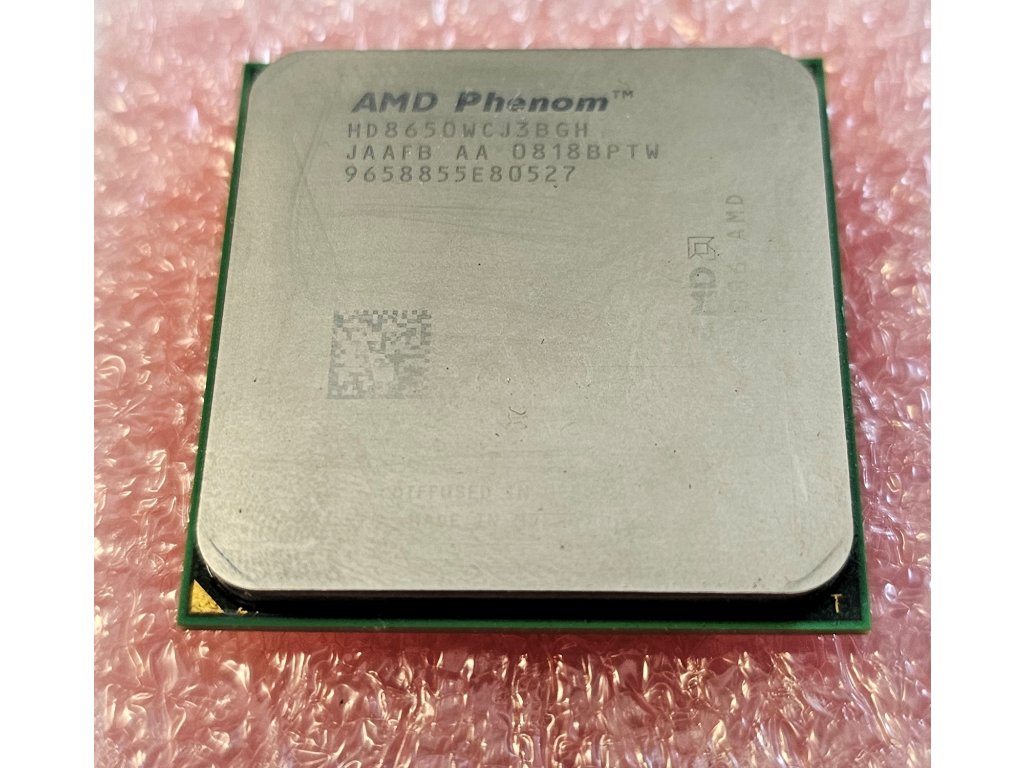

Procesor HD8650WCJ3BGH / AMD Phenom X3 8650

General information
Type    CPU / Microprocessor
Market segment    Desktop
Family    AMD Phenom X3
Model number  ?     8650
CPU part numbers
HD8650WCJ3BGH is an OEM/tray microprocessor
HD8650WCGHBOX is a boxed microprocessor with fan and heatsink
Stepping codes    JAAAB AA   JAAFB AA   JAAHB AA   JAAPB AA   LAAPB AA
Frequency  ?     2.3 GHz / 2300 MHz
Bus speed  ?     One 1800 MHz 16-bit HyperTransport link (3.6 GT/s)
Clock multiplier  ?     11.5

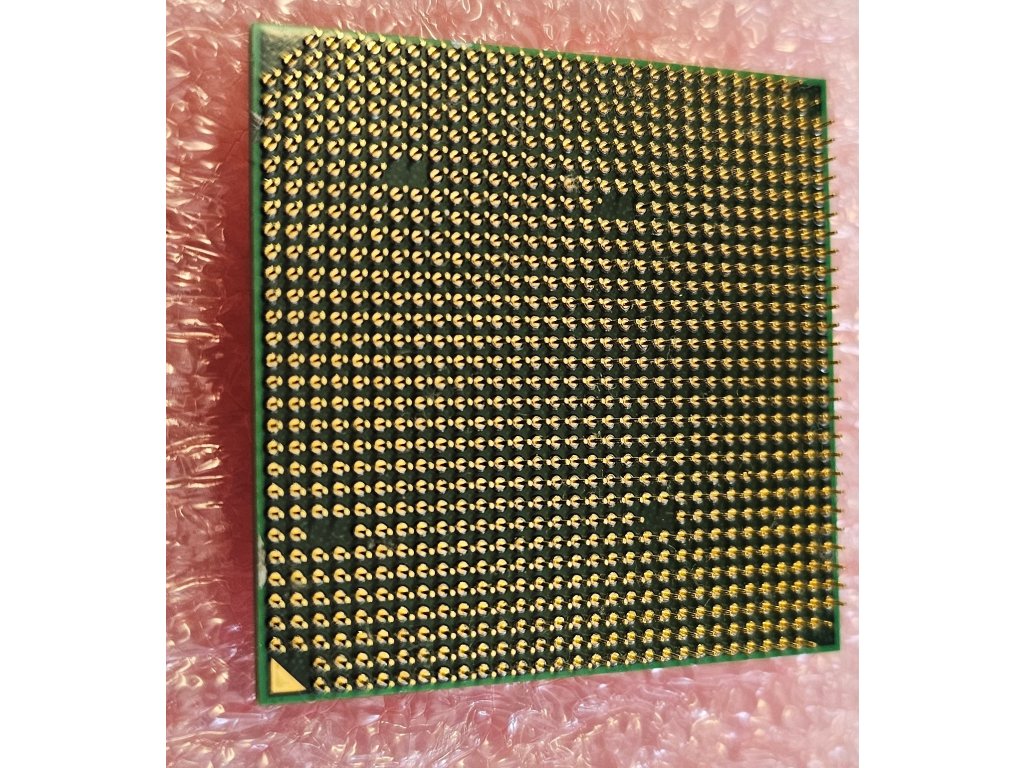

Package    940-pin organic micro-PGA
Socket    Socket AM2
Socket AM2+
Weight    1.4oz / 39.2g (CPU)
15.8oz / 446.9g (Box)
Introduction date    Apr 23, 2008
Price at introduction    $165
Architecture / Microarchitecture
Instruction set    x86
Microarchitecture    K10
Platform    Cartwheel (mainstream platform with AMD 780G chipset)
Spider (performance platform with AMD 790FX/790GX chipsets)
Processor core  ?     Toliman
Core stepping  ?     DR-B3
CPUID    100F23
Manufacturing process    0.065 micron silicon-on-insulator (SOI) technology
Die    285mm2
Data width    64 bit
The number of CPU cores    3
The number of threads    3
Floating Point Unit    Integrated
Level 1 cache size  ?     3 x 64 KB 2-way set associative instruction caches
3 x 64 KB 2-way set associative data caches
Level 2 cache size  ?     3 x 512 KB 16-way set associative caches
Level 3 cache size    2 MB 32-way set associative shared cache
Multiprocessing    Uniprocessor
Extensions & Technologies
MMX instructions
Extensions to MMX
3DNow! technology
Extensions to 3DNow!
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSE4a  ?
AMD64 / AMD 64-bit technology  ?
AMD-V / AMD Virtualization technology
Security Features    EVP / Enhanced Virus Protection  ?
Low power features
Cool'n'Quiet 2.0
CoolCore technology  ?
Integrated Graphics Processing Unit
None
Integrated peripherals / components
Memory controller    The number of controllers: 1
Memory channels (per controller): 2
Memory channels (total): 2
Supported memory: DDR2-1066
Other peripherals    HyperTransport 3.0 technology
Electrical / Thermal parameters
V core  ?     1.2V - 1.25V
V NorthBridge    1.25V
Maximum operating temperature  ?     55°C - 71°C
Thermal Design Power  ?     95 Watt
